Straight Line Graphs
Please note: The videos on this page are designed to be used in a classroom environment. Therefore, audio descriptions and captions will not be provided for this content as doing so would invalidate the classroom task.
Maths KS4 - Lesson 3: Straight line graphs

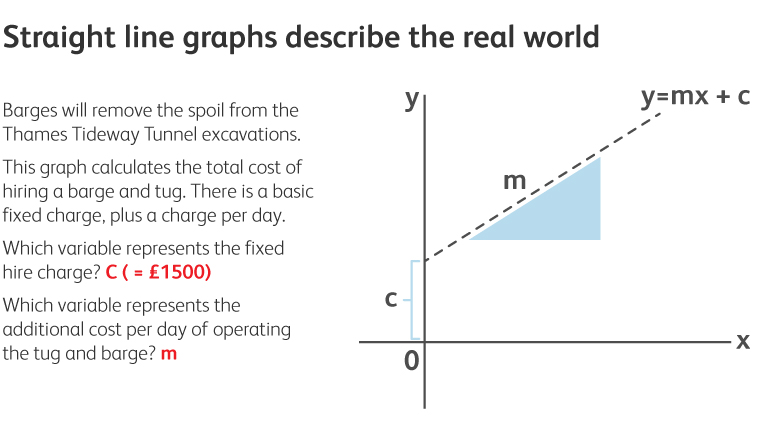

Screen 2a: Straight line graphs have the form y = mx + c. m is the gradient: the rate of change. It is a measure of how much y changes with each value of x. c is the intercept: the value of y when x = 0.
Screen 2b: Straight line graphs have the form y = mx + c. m is the gradient: the rate of change. It is a measure of how much y changes with each value of x. c is the intercept: the value of y when x = 0.
Screen 3: Barges must dock at each Tideway foreshore site. Because the River Thames is tidal in some parts, the barges must not sink too low as they are loaded with spoil.

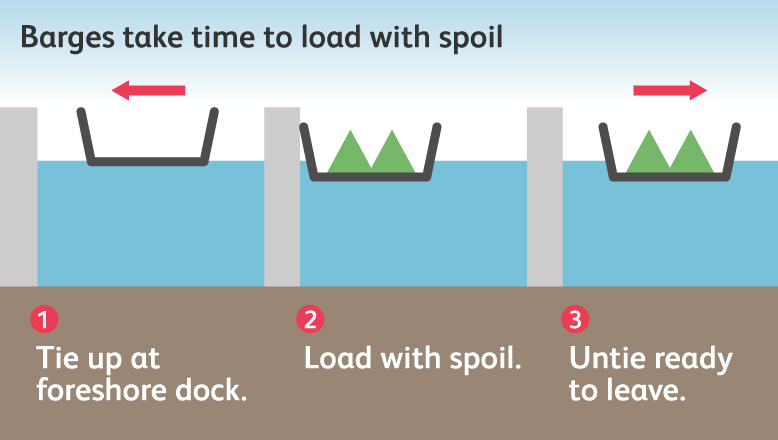

Screen 4: Different barges take different times to load. This depends on how fast the barge can tie or untie from the dock, and how long it takes to load each tonne of spoil into the barge. These times vary depending on the barge design.

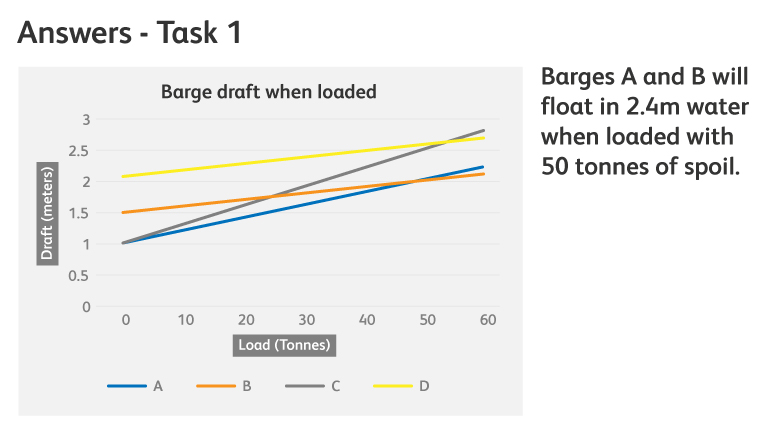

Screen 5: Worksheet answers

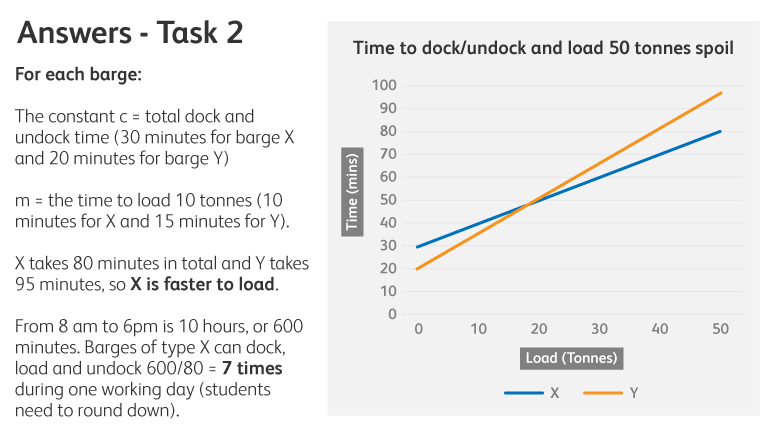

Screen 6: Worksheet answers

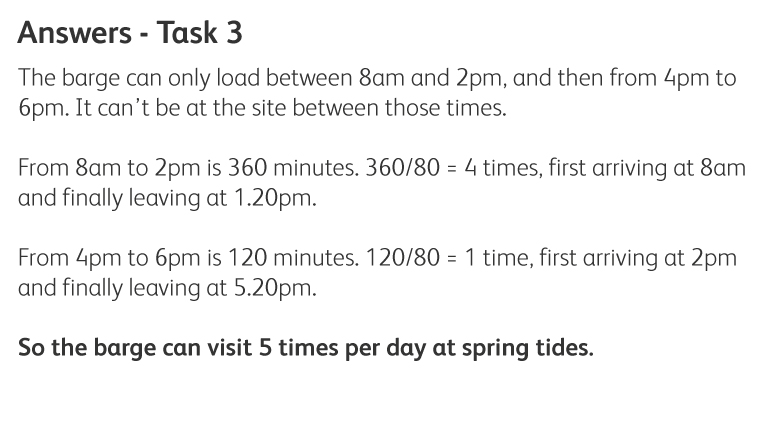

Screen 7: Worksheet answers
Screen 8: Worksheet answers
